A Five String Les-Paul Style Bass

A Five String Les-Paul Style Bass

Delivered To The Customer On 04/25/2006

Delivered To The Customer On 04/25/2006

Ed came to me with a pretty good idea of what he wanted. He had lots of pictures of elements he liked in different bass guitars and wanted to incorporate into his instrument. Here's an overview of what we came up with:

  • Shape: Modified "Les Paul" type shape with a flat top and slightly larger than the original.

  • Body Wood: 1.75" mahogany bottom with .25" bubinga top. 2" thick total.

  • Top Edge: Chamferred approximately 1" to 1.5" from top edge, approximately .5" deep.

  • Bottom Edge Radius: .5" roundover.

  • Other Body Features: Cheese-belly cutout.

  • Number Of Strings: 5

  • Scale Length: 34"

  • Neck Wood: Laminated mahogany with single maple stripe. Thin profile.

  • Neck Type: Set neck (glued in)

  • Truss Rod: Dual action, carbon fiber reinforced.

  • Fingerboard: Fretless, ebony with decorative curve on body end, 12" radius.

  • Dot Inlays: None on fingerboard face. Side dot markers at fret positions. 3, 5, 7 , 9, 12, 15, 17, 19, 21, 24 positions use 3/32" dot, remaining positions use 1/16" dot.

  • Nut: Graphite (black), 1.875" Nut Width

  • Hardware Color: Chrome

  • Headstock: Bubinga overlay, Gotoh tuners

  • Bridge: Schaller 496

  • Strap Buttons: Standard

  • Electronics: Bartolini 72BC5CBC-B neck pickup, Bartolini 72BC5CBC-T bridge pickup, two volume, two tone.

  • Finish: Uncolored, satin.

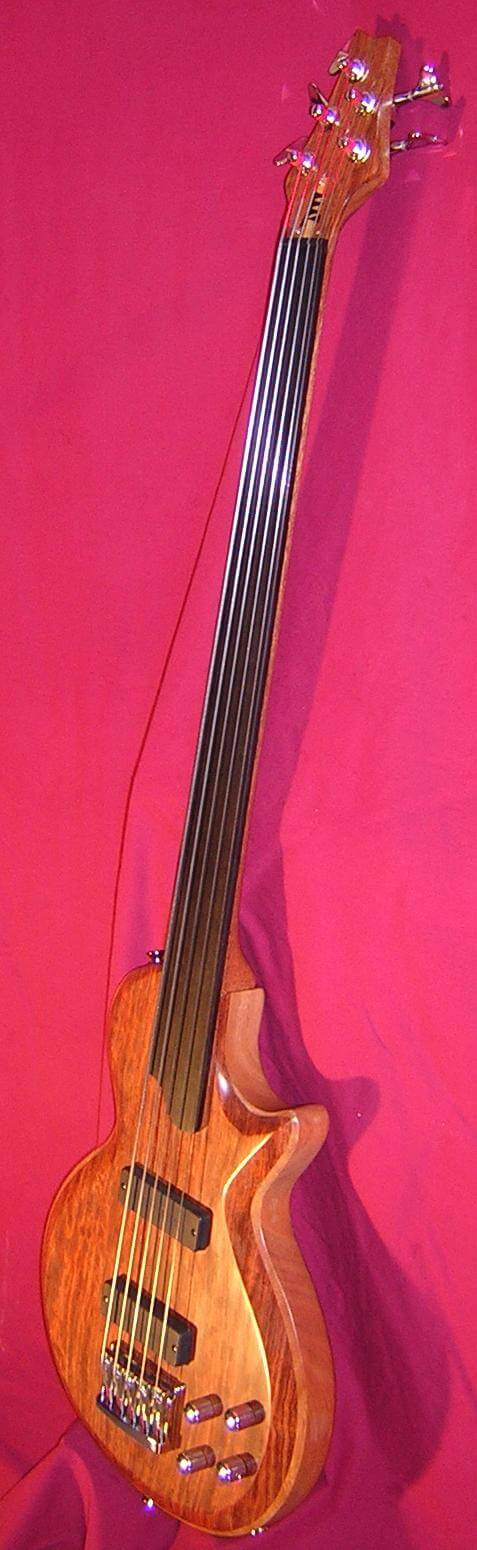

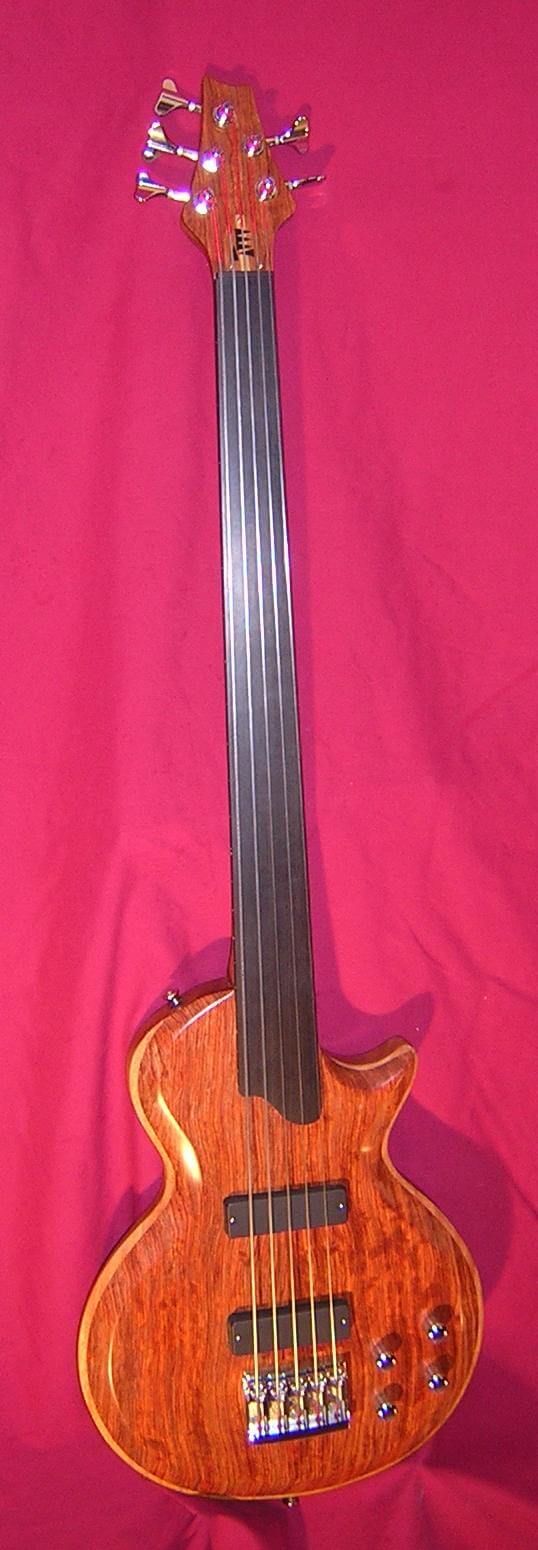

A picture of the full bass. Another picture of the full bass.

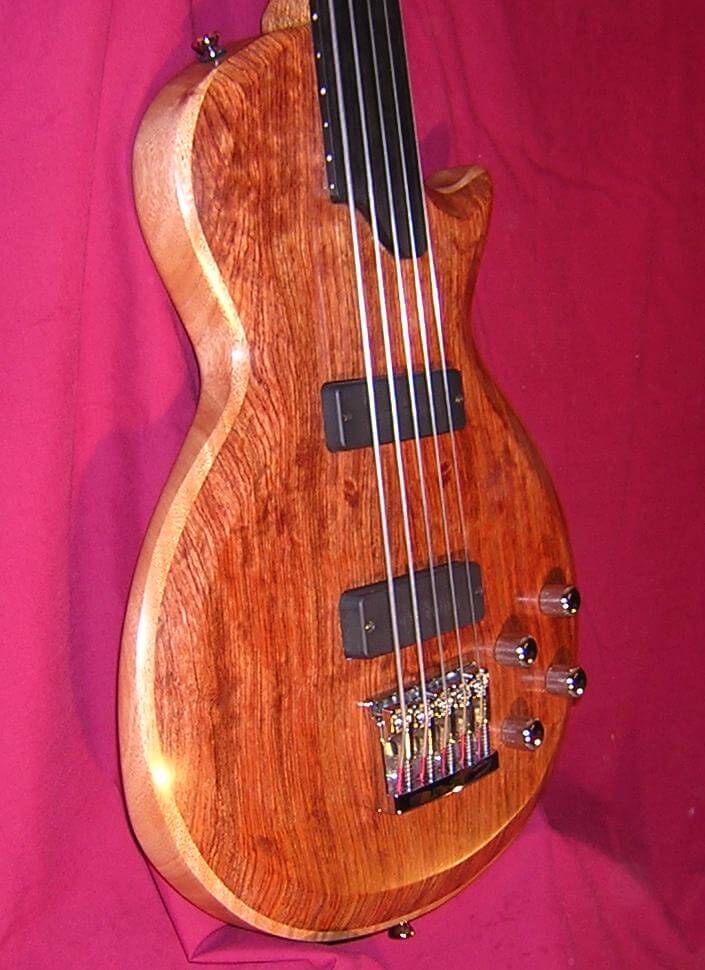

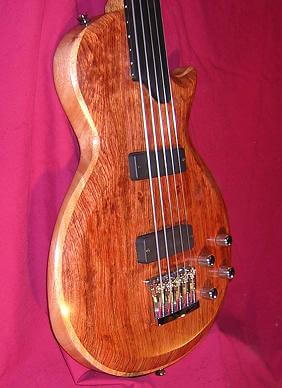

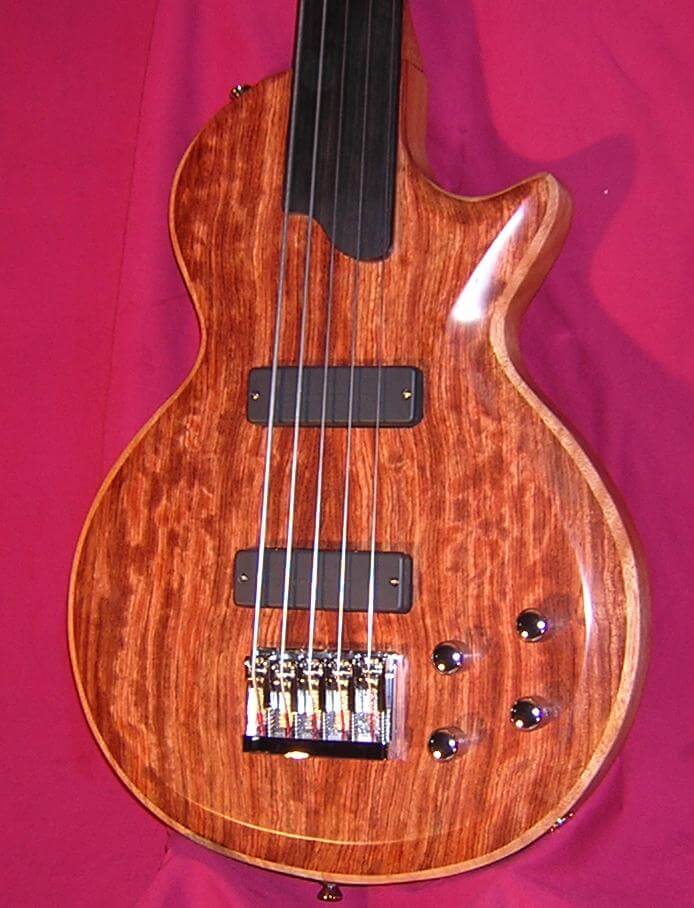

A close shot of the front of the body. A close shot of the left front of the body.

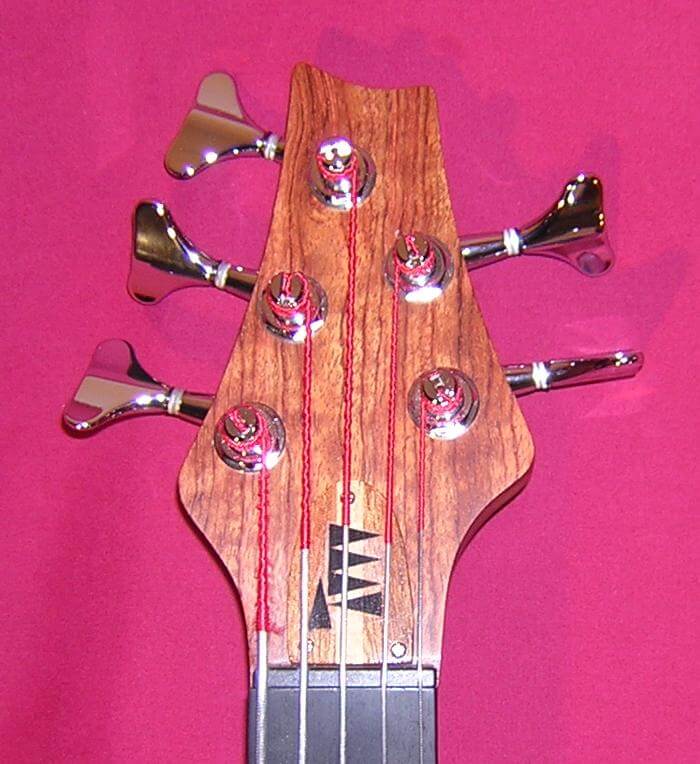

A close shot of the headstock

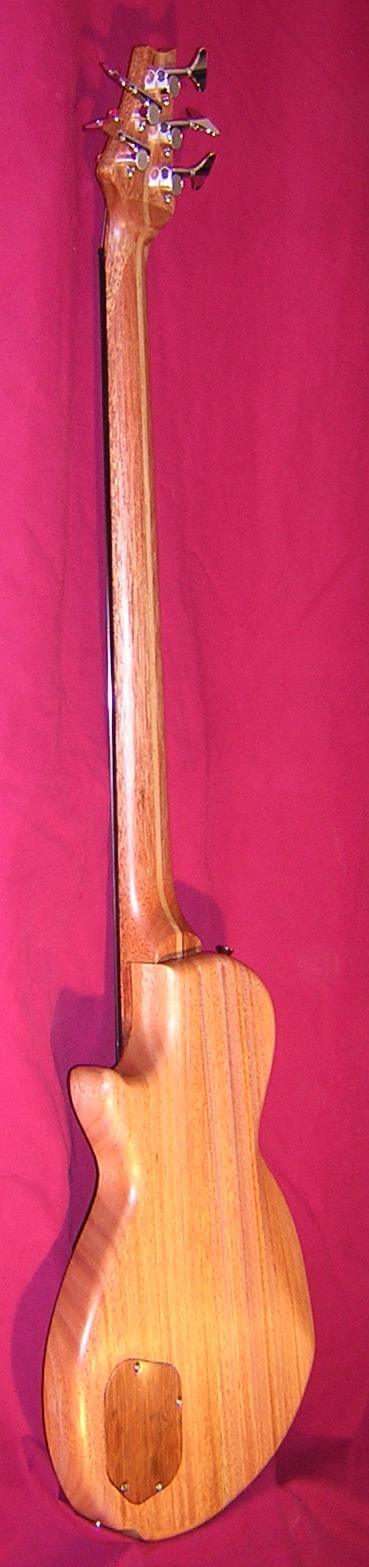

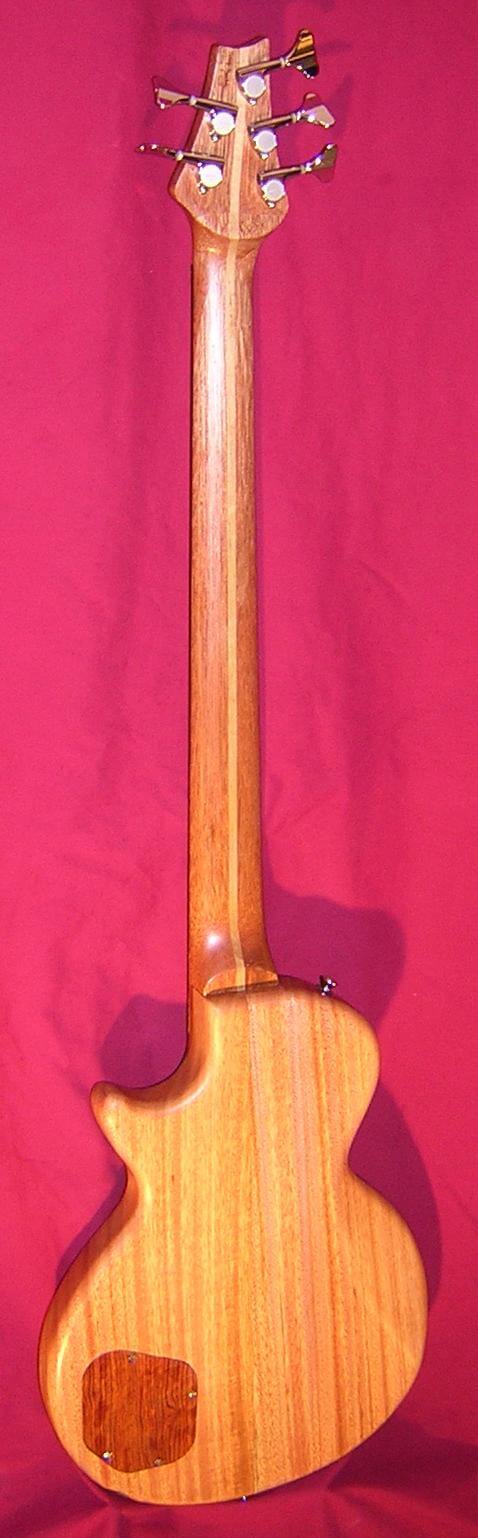

A picture of the full rear of the bass. Another picture of the full rear of the bass.

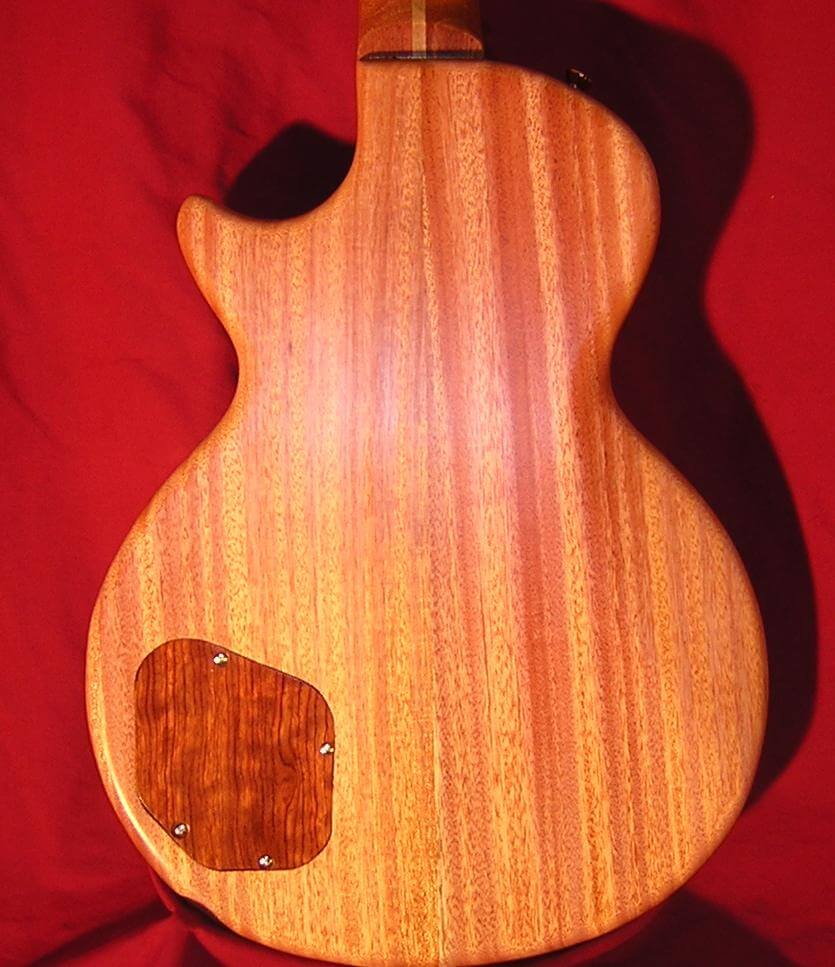

A close shot of the rear body.

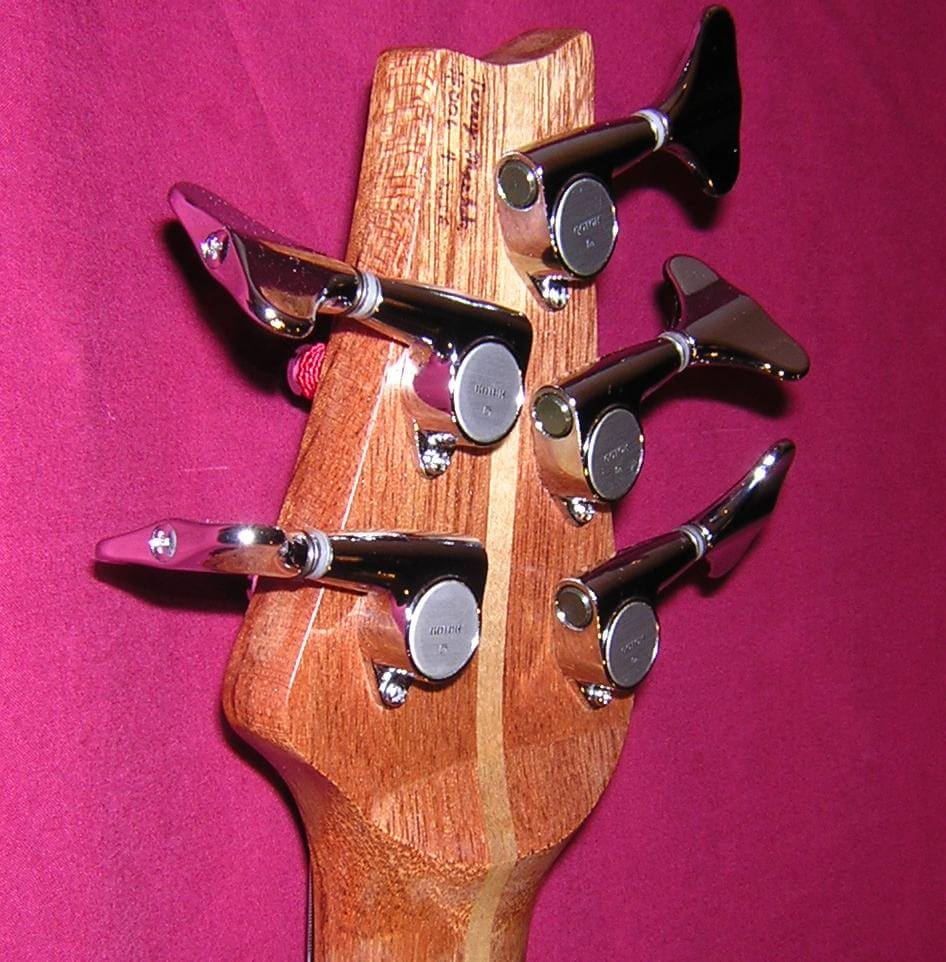

The back of the headstock, showing the volute.

Of course, the most important picture is the happy customer with his new instrument!

Ed receiving his new bass.
